Ball Valves

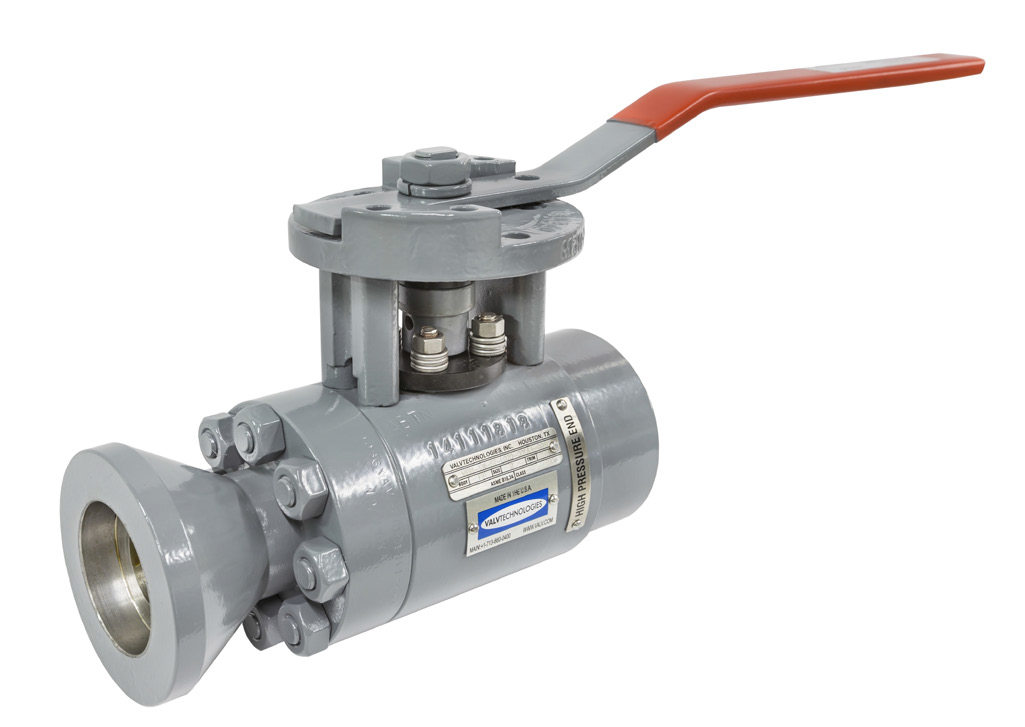

Metal Seated Ball Valves
Technical Data
Sizes ¼ – 4”
Pressure Classes ASME / ANSI Class 900 – 4500
Temperature Range -50 up 1500°F (-45 up 815°C)
Materials of Construction:
Carbon steel (A105) – standard
Alloy steel (F22, F91) – standard
Stainless steel (316H) – standard
Duplex steel
Exotic alloys
Other materials available upon request
End Connections:
Socketweld – standard
Buttweld – standard
Other end connections available upon request

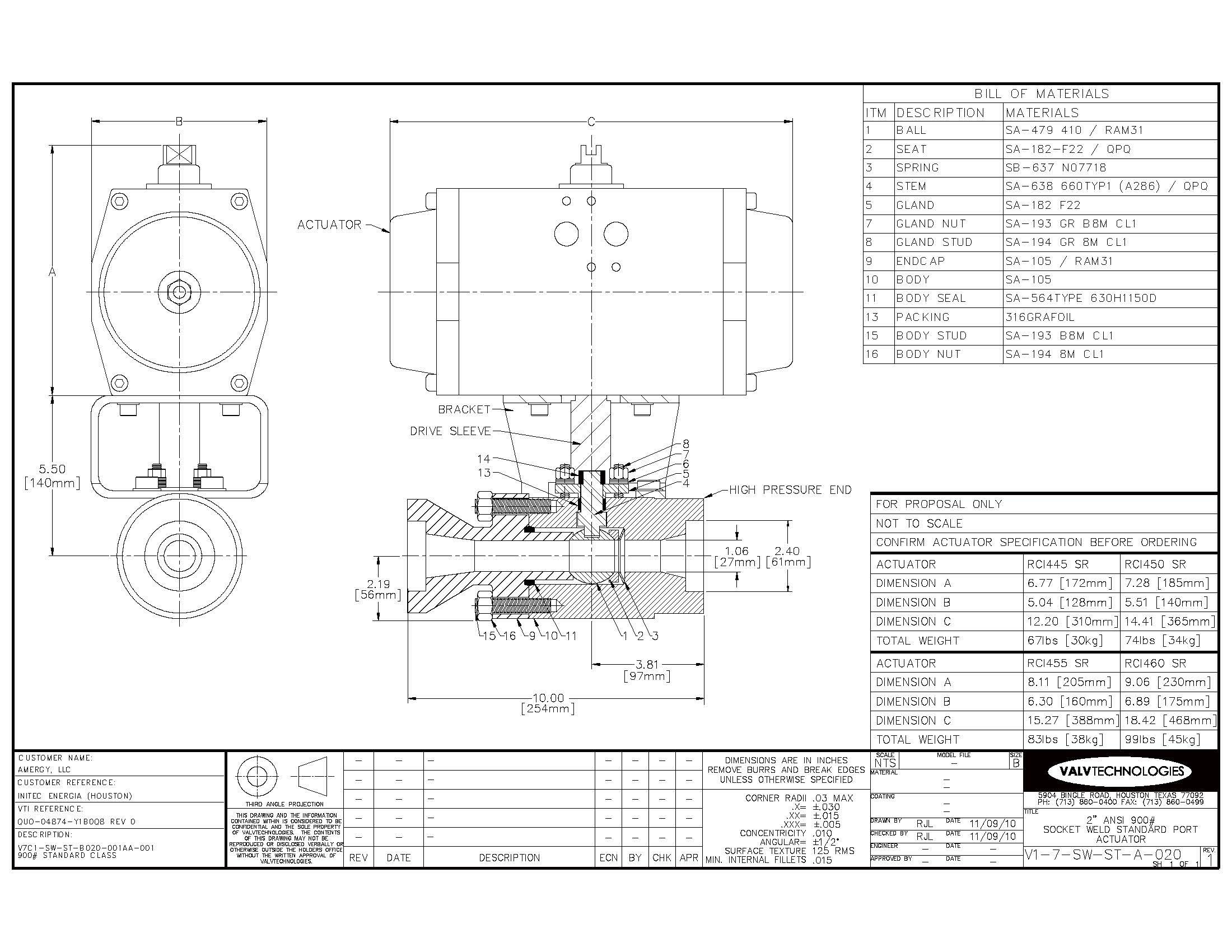

V7C1-SW-ST Class 900 WITH VALVTECHNOLOGIES ACTUATION PACKAGE
VTI METAL SEATED BALL VALVE, 900, SW ENDS, A105 CS WITH CHROME CARBIDE TRIM
ASSEMBLED WITH PNEUMATIC ACTUATOR
VALVTECHNOLOGIES MODEL VTI06-S10, SPRING RETURN, FAIL CLOSE, PNEUMATIC RACK AND PINION, HARD ANODIZED COATING WITH HIGH TEMP LUBRICANT AND VITON SEALS.
Price range: 2500 – 4800 USD

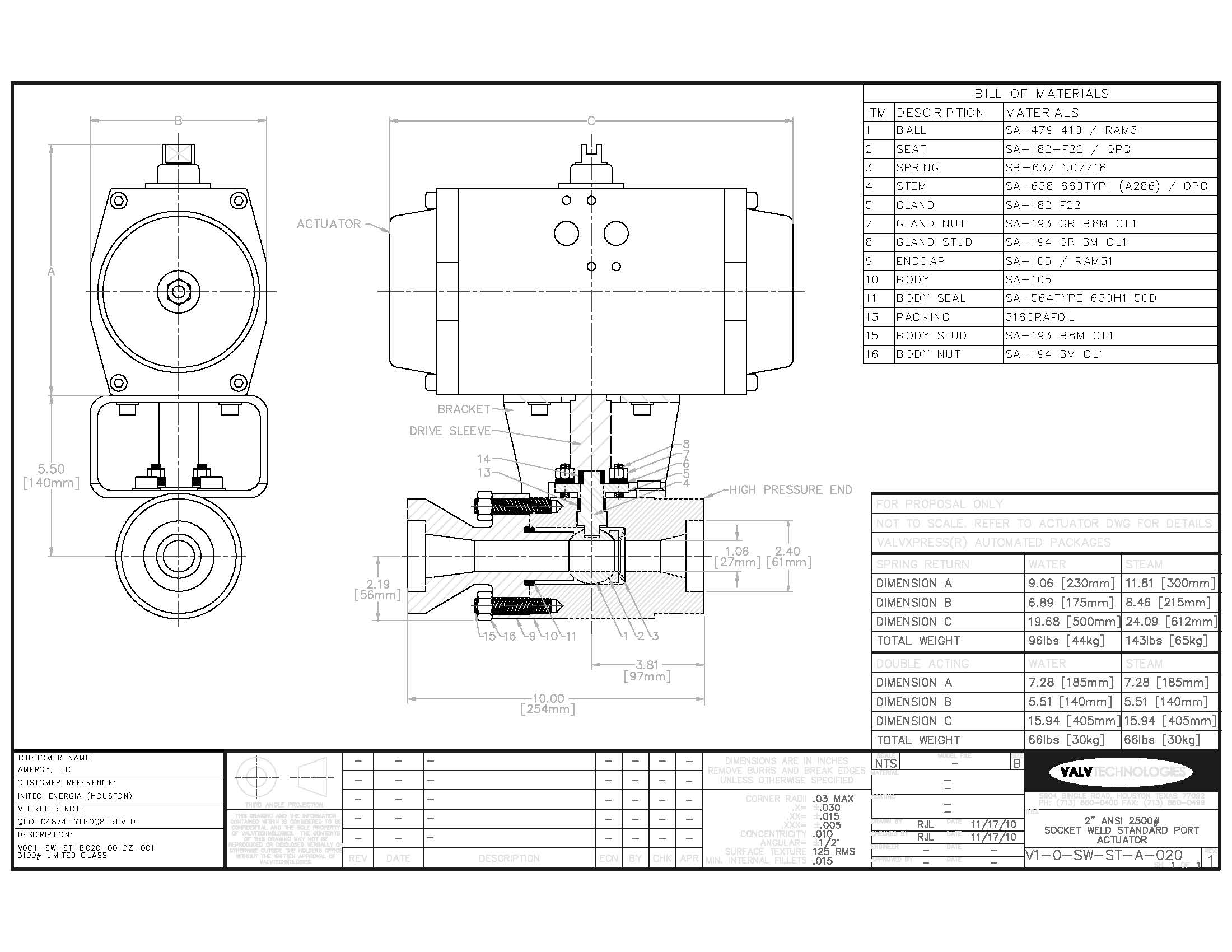

V0C1-SW-ST Class 2500 WITH VALVTECHNOLOGIES ACTUATION PACKAGE
VTI METAL SEATED BALL VALVE, 2500, SW ENDS, A105 CS WITH CHROME CARBIDE TRIM
ASSEMBLED WITH PNEUMATIC ACTUATOR
VALVTECHNOLOGIES MODEL VTI06-S10, SPRING RETURN, FAIL CLOSE, PNEUMATIC RACK AND PINION, HARD ANODIZED COATING WITH HIGH TEMP LUBRICANT AND VITON SEALS.
Price range: 3100 – 5400 USD
